What Key Features Should an Interactive Floor LED Display Have?

For wedding stages, fashion shows, museums, and nightlife venues, LED floor display systems must deliver strong visual performance while supporting high-intensity usage. A high-quality system should include:

  • High load capacity up to 2,000 kg/m²

  • Safe anti-slip floor surface design

  • Real-time interactive sensor tracking

  • Immersive interactive visual effects

  • Easy content management system

  • Quick installation and low maintenance

Interactive floor LED display features including high load capacity up to 2000 kg per square meter, anti-slip surface, real-time sensing, and immersive visual effects

What Are the Applications of Floor LED Displays?

Such displays are widely used in commercial spaces that focus on immersive experiences and interactive visual presentations.

LED floor display used in fashion shows and runway events with immersive lighting effects, high brightness visuals, and durable stage performance
DJ performances on a LED floor stage with dynamic lighting effects, immersive visuals, and high brightness display for nightlife and live events
LED floor display used on event stages for concerts, DJ performances, music festivals, and fashion shows with synchronized lighting and immersive visuals
LED floor display used at music festivals featuring high brightness visuals, immersive effects, and durable structure for large outdoor and indoor stage environments

Event Stages

Used for concerts, DJ performances, music festivals, and fashion shows. Visual content syncs with stage lighting to create a strong immersive experience.

Interactive LED floor display used in dance bars and nightlife venues creating dynamic lighting effects, immersive visuals, and high energy atmosphere
Interactive LED floor display used in entertainment venues such as dance bars, nightclubs, and KTVs creating dynamic visuals and immersive atmosphere
Interactive LED floor display used in KTV environments creating dynamic lighting effects, immersive visuals, and enhanced entertainment atmosphere
Interactive LED floor display used in nightclubs creating dynamic lighting effects, immersive visuals, and high-energy nightlife atmosphere

Entertainment Venues

Used in dance bars, nightclubs, and KTV environments. Creates interactive floor visuals that enhance the overall atmosphere.

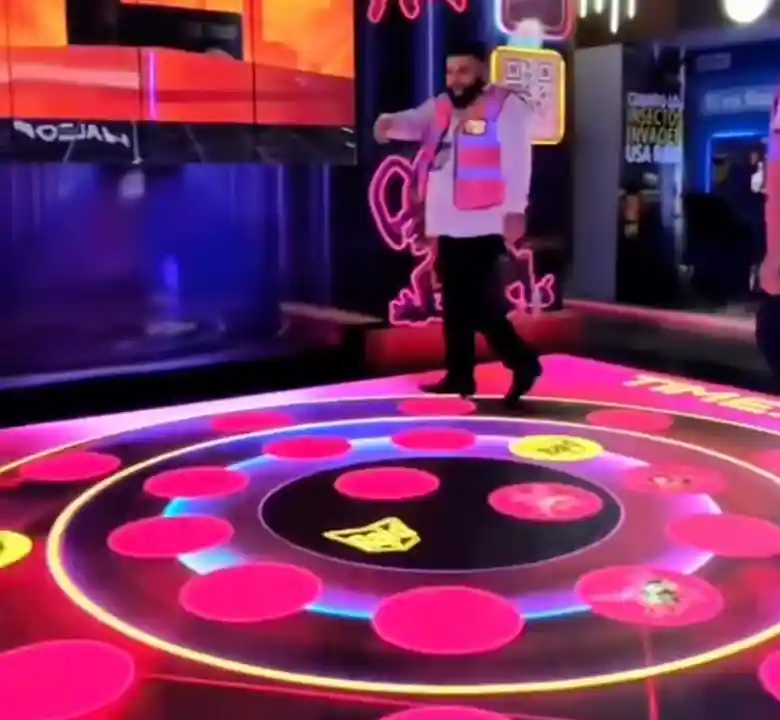

LED floor display used in international trade shows and exhibitions to enhance booth visibility, attract visitors, and deliver immersive brand presentation experiences
LED floor display used in brand exhibitions, trade shows, and product launch events to enhance booth visibility and attract visitor attention
LED floor display used in corporate showrooms creating immersive product presentation space with dynamic visuals and interactive engagement for visitors

Brand Exhibitions

Used in international trade shows, corporate showrooms, and product launch events. Helps brands attract attention and improve booth visibility.

Interactive LED floor display in commercial spaces like shopping mall atriums and pop-up stores with motion-triggered effects, boosting engagement

Commercial Spaces

Used in shopping mall atriums, pop-up stores, and interactive advertising areas. Step-based or motion-triggered effects help increase engagement and visitor dwell time.

Interactive LED floor display in exhibition halls, science museums and digital showrooms with motion sensing interaction

Technology & Exhibition Halls

Used in digital showrooms, science museums, and cultural exhibition spaces. Motion sensing enables interactive presentation and immersive learning experiences.

Who Commonly Uses Floor LED Displays?

Event Companies

Key Focus:

Fast setup, teardown and maintenance on-site; Rental durability for repeated use; Easy transport and handling.

LED floor display for event companies designed for fast setup, repeated rental use, easy transport, and durable LED flooring tiles performance

Common Pitfalls:

Frequent installation and dismantling can cause wear and damage on LED flooring tiles systems.

AV System Integrators

Key Focus:

Control system compatibility; Software stability during operation; Support for interactive functions.

LED floor display system integration for AV system integrators with stable control compatibility, interactive function support, and low-latency performance

Common Pitfalls:

Any delay in interactive response can affect project delivery and system performance.

Shopping Mall Operators

Key Focus:

Operational safety; Load-bearing performance; Interactive advertising/game engagement.

Interactive LED floor display in shopping mall environments with high load-bearing capacity, retail advertising engagement, and motion-based visual interaction for visitors

Common Pitfalls:

Low-quality products may lead to surface wear and potential safety risks over time.

Museum Operators

Key Focus:

Long-term stable operation; Low maintenance requirements; Immersive interactive experience.

Interactive LED floor display in museums and exhibition halls enabling immersive learning experiences, motion sensing interaction, and stable long-term operation

Common Pitfalls:

System downtime or faults can directly impact visitor experience and exhibition flow.

What LED Floor Series Does LEDSINO Offer?

FFV-Series

  • FV mask surface protection

  • Non-interactive display system

  • High load-bearing performance

  • Designed for heavy pedestrian traffic

Best match: FV mask non-interactive LED floor solution designed for basic display use and heavy foot traffic environments.

FFI-Series

  • FV mask surface structure

  • Pressure interactive system

  • Real-time response effects

  • Models: P1.95 | P2.5 | P2.98 | P3.91

Best match: FV mask interactive LED floor system that supports pressure and infrared sensing effects.

FGB-Series

  • GOB protective encapsulation

  • Non-interactive stable display

  • High image clarity output

  • Strong surface protection

Best match: GOB-encapsulated non-interactive LED floor solution with enhanced protection and image clarity.

FGI-Series

  • GOB protective encapsulation

  • Multi-mode interaction support

  • High impact resistance surface

  • Stable real-time response system

GOB-encapsulated interactive LED floor system with high protection performance and multi-touch interaction support.

FOV-Series

  • High brightness outdoor display

  • Waterproof and dustproof design

  • Stable operation in harsh environments

  • Models: P2.6 | P2.98 | P3.91 | P4.81

Outdoor high-brightness floor panels designed for all-weather operation with waterproof and dustproof protection.

FGR-Series

  • Flexible rollable structure

  • Fast setup and dismantling

  • Mobile rental application

  • Lightweight transport design

Rollable floor screens for mobile rental use and fast stage setup, also temporary events and flexible deployment.

Core Specs for Floor LED Displays

Specification Recommended Range What It Means for Users
Pixel Pitch P1.95/P2.5/P2.6/2.98/P3.91/P4.81 Determines image clarity and viewing distance suitability
Load Capacity 1000–2000 kg/m² Defines structural strength for walking and heavy traffic
Refresh Rate ≥3840Hz Ensures stable performance for camera and live video capture
Brightness 1000–5000 nits Maintains visibility in different lighting environments
Protection Rating IP65 Provides water and dust resistance for reliable operation
Viewing Angle 140°–160° Keeps image consistency from multiple viewing directions
Lifespan 100,000 hours Reduces long-term replacement and maintenance cost
Maintenance Type Front/Rear service Improves repair efficiency and reduces downtime
Cabinet Size 500×500 mm / 500×1000 mm Supports flexible installation layouts and modular design combinations

Parameter P1.95 P2.5 P2.97 P3.91 P4.81
Pixel Pitch 1.95 mm 2.5 mm 2.97 mm 3.91 mm 4.81 mm
Pixel Density (dots/m²) 262,144 160,000 112,896 65,536 43,264
LED Type SMD1515 SMD1515 SMD1515 SMD2020 SMD2020
Brightness (cd/m²) 1000 1000 1000 / 5000 1000 / 5000 1000 / 5000
Module Size (mm) 250×250 250×250 250×250 250×250 250×250
Module Resolution 128×128 100×100 84×84 64×64 52×52
Cabinet Size (mm) 500×1000 500×1000 500×1000 500×1000 500×1000
Cabinet Weight 25 kg 25 kg 25 kg 25 kg 25 kg
Refresh Rate 3840 Hz 3840 Hz 3840 Hz 3840 Hz 3840 Hz
Power Cons(Avg / Max) 400W / 800W 400W / 800W 400W / 800W 400W / 800W 400W / 800W
Viewing Angle (H/V) 120° / 120° 120° / 120° 120° / 120° 120° / 120° 120° / 120°
Installation Method Ground Support Ground Support Ground Support Ground Support Ground Support

What Are the Installation Methods for Floor LED Displays?

Adjustable bracket LED floor installation system using metal support feet and rail structure for leveling uneven floors in exhibition and retail environments
Embedded LED floor installation recessed into ground structure creating seamless surface alignment with surrounding flooring for high-end retail and exhibition spaces
Rollable LED floor display system designed for mobile rental use with fast setup lightweight structure and repeated deployment for touring events and stages
Installation Type Description Key Benefits Typical Use Cases
Adjustable Bracket & Rail System (Most Recommended) Uses adjustable metal support feet and rail structure. The height is manually leveled using screw adjustment before fixing LED floor cabinets into position. Easy leveling even on uneven floors; cable space hidden underneath; stable structure for long-term use Exhibition spaces, museums, retail environments, permanent stage setups
Embedded / Recessed Installation The LED floor is installed into a pre-built floor recess so the surface stays level with surrounding flooring. Clean, seamless surface with no height difference; safer walking experience; strong visual integration High-end retail stores, immersive exhibition spaces, XR studios, corporate lobbies
Rollable Mobile Installation A LED floor video wall system designed for fast setup, transport, and repeated use in different venues. Quick setup and removal; easy transport; suitable for changing stage layouts Touring shows, rental stages, temporary events

Floor LED Display Buying Guide

Floor LED display installation environment selection for indoor and outdoor use with brightness waterproof rating and durability comparison for different applications

Step 1. Installation Environment

Select the right series based on the application and weather conditions:

  • Indoor:

    • Brightness: 800–1,200 nits.

    • Key Features: Flicker-free operation; matte anti-glare surface.

    • Environment: Indoor controlled lighting conditions.

  • Outdoor:

    • Brightness: 4,500–5,500+ nits for direct sunlight visibility.

    • Durability: IP65 / IP66 waterproof and dustproof rating.

    • Environment: Outdoor exposure to sunlight, rain, and temperature variation.

⚠️ Common Mistake: Indoor panels used outdoors may fail under sunlight and rain, causing hardware damage and shortened lifespan.

Interactive floor LED display sensing system including pressure radar infrared and capacitive technologies for real-time motion and touch response effects

Step 2. Interaction System

Interactive features are optional; when enabled, a dedicated sensing system and content software are required:

  • 1. Pressure Sensing Interaction (Most Popular)

    • Principle: Pressure sensor ICs are embedded under the module to detect position and applied force.

    • Typical Effects: Water ripple, footprint animation, glass-breaking effect, piano sound response, pressure-based scoring games.

  • 2. Radar Sensing Interaction (Cost-Effective Solution)

    • Principle: Motion and direction are detected through microwave radar signals.

    • System Note: Used when no pressure sensor IC is installed (e.g., FFV-Series).

    • Typical Effects: Light activation on approach, flowing light guidance, crowd movement effects, auto sleep for energy saving.

  • 3. Infrared Interaction

    • Principle: Infrared arrays or beam systems detect body movement and blocking signals.

    • Typical Effects: Footstep trails, particle following, flowing light effects, gesture switching, multi-user interaction.

  • 4. Capacitive Sensing Interaction

    • Principle: Detects changes in human capacitance for touch and proximity recognition.

    • Typical Effects: Touch ripple, proximity lighting, swipe transitions, object recognition interaction.

⚠️ Common Mistake: Using an unsuitable sensing type or relying on a single method lead to inaccurate response and poor user experience.

Floor LED display pixel pitch selection guide showing P1.9 to P4.81 options based on viewing distance for retail events and stage applications

Step 3. Pixel Pitch Selection

Choose pixel pitch based on viewing distance:

  • Close Viewing

    • Pixel Pitch: P1.9 / P2.5

    • Use Case: Retail, showrooms, museums

    • Requirement: High image sharpness for short viewing distance

  • Medium Viewing

    • Pixel Pitch: P2.9 / P3.91

    • Use Case: Commercial spaces, events

    • Requirement: Balanced clarity and viewing distance

  • Long Viewing

    • Pixel Pitch: P4.81

    • Use Case: Stage performances, large-scale events

    • Requirement: Visibility from extended distance

  • Space Planning Factors

    • Screen size: Total width and height

    • Layout: Aspect ratio configuration

    • Orientation: Module direction and installation layout

⚠️ Common Mistake: Selecting pixel pitch based only on screen size may cause low image clarity or unnecessary cost due to over-specification.

Floor LED display hardware configuration including control system power supply cabinet type surface mask and load bearing structure for safe operation

Step 4. Hardware Configuration

This step determines long-term safety and reliability of a floor LED display:

  • Surface Mask

    • FV Mask: Pressure-resistant surface for foot traffic use

    • GOB Treatment: Enhanced contrast and display performance

    • Protective Glass: Corrosion resistance and heat resistance

  • Control System

    • Brands: Mooncell / Novastar

    • Function: Image stability and signal synchronization

  • Power Supply

    • Recommended Brands: Chuanglian / Meanwell

    • Function: Stable and consistent power delivery

  • Cabinet Type

    • Sheet Metal Cabinet: Widely used standard structure (2020–2026)

    • Aluminum Cabinet: Lightweight design with improved heat dissipation

  • Maintenance Method

    • Front Service: Vacuum suction access for module replacement

    • Requirement: Essential for floor LED display maintenance

  • Load Capacity

    • Requirement: ≥ 2,000 kg/m² weight-bearing capability

    • Function: Ensures structural safety under foot traffic

⚠️ Common Mistake: Ignoring structural design and maintenance planning increases failure risk and makes servicing difficult.

Floor LED display installation structure showing pit depth cabling ventilation steel frame and load bearing design for stable and flat setup

Step 5. Installation Structure

This step defines installation structure, wiring layout, and supporting components to ensure a flat and stable floor LED setup:

  • Basic Structure

    • Standard Pit Depth: 110–150 mm

    • Cabinet Thickness: 75 mm

    • Adjustable Support Height: 35–75 mm

  • Cabling and Ventilation

    • Cable Space: Reserved space for power and signal cables

    • Ventilation: Optional airflow space for heat dissipation

  • Structural Option

    • Steel Frame: 40×80 mm optional steel base structure

    • Purpose: Improved flatness and installation stability

  • Installation Requirement

    • Flatness: Level surface required across full installation area

    • Load Support: Must match system weight distribution requirements

⚠️ Common Mistake: Ignoring structural planning and load-bearing design may cause uneven installation, instability, and difficult maintenance.

Why Global Buyers Choose LEDSINO?

Rapid production of LED floor displays using stable supply chain partners such as NationStar and MeanWell for large volume manufacturing consistency

Rapid Production

We work with suppliers such as NationStar and MeanWell to maintain stable large-volume output.

Factory direct LED floor display pricing from Shenzhen manufacturing reducing costs compared to distributors with competitive 20 to 50 percent price advantage

Factory-Direct Pricing

Manufacturing in Shenzhen enables direct pricing, typically 20–50% lower than local distributors.

Global LED floor display shipping with air and sea freight logistics including customs clearance support for international AV project delivery

Global Shipping Experience

We support air and sea shipping with logistics partners handling delivery and customs clearance.

Immersive LED stage screen in exhibition hall showing client testing interactive sensing effects with real-time response and pre-installed setup performance

Immersive stage screen

In the exhibition hall, the immersive stage screen is tested for interactive sensing performance and real on-site effects, with LEDSINO supporting stable pre-installed display solutions.

Client testing interactive sensing effect on LED stage screen in exhibition hall with immersive visuals and responsive motion detection system

Client testing effect

The client evaluates the interactive sensing response on-site, demonstrating immersive visuals and stable system performance, with LEDSINO ensuring reliable LED stage screen solutions.

Pre-installed LED stage screen setup in exhibition hall showing immersive display effect and stable on-site performance for interactive demonstration

Pre-installed setup

The pre-installed setup delivers a stable immersive stage effect in the exhibition hall, with LEDSINO providing dependable LED display solutions for interactive environments.

LEDSINO is a professional floor LED display manufacturer in China specializing in interactive floor screens, stage floor displays, and commercial LED flooring solutions. With 10+ years of manufacturing experience, OEM & ODM capabilities, and projects delivered to 80+ countries, we provide reliable floor LED display systems for events, exhibitions, retail environments, and entertainment venues worldwide.LEDSINO is a professional floor LED display manufacturer in China specializing in interactive floor screens, stage floor displays, and commercial LED flooring solutions. With 10+ years of manufacturing experience, OEM & ODM capabilities, and projects delivered to 80+ countries, we provide reliable floor LED display systems for events, exhibitions, retail environments, and entertainment venues worldwide.

Common FAQs about Floor LED Displays

Heavy duty LED floor display designed for safe walking use in events and exhibitions with reinforced structure and anti-slip surface for pedestrian traffic
Interactive LED floor display with high load capacity up to 2000 kg per square meter designed for concerts exhibitions and high traffic commercial environments
Interactive LED floor screen pixel pitch selection guide showing P1.9 to P4.81 options based on viewing distance for retail stage and event applications

Yes, a heavy duty LED floor is designed for walking and event use. Reinforced structure and protective surface layers allow safe pedestrian traffic in exhibitions, stages, and interactive environments.

Most interactive LED floors support around 1,000–2,000 kg/m², depending on structure design. This ensures safe use in concerts, exhibitions, and high-traffic commercial spaces.

Pixel pitch depends on viewing distance. P1.9–P2.5 is ideal for close viewing, while P2.9–P4.81 works better for stages and large event spaces.

The interactive LED floor price typically ranges from USD 500–2,000 per square meter, depending on pixel pitch, interaction technology, cabinet structure, and project size. Higher-resolution models and advanced sensor systems generally increase the overall cost.

Typical Price Range:

  • P3.91–P4.81: USD 500–900/m²
  • P2.5–P2.9: USD 800–1,500/m²
  • P1.9–P2.5 interactive systems: USD 1,200–2,000+/m²

Prices may vary based on customization, control systems, installation requirements, and order quantity.

Quality control includes module testing, IC inspection, load-bearing verification, and aging tests. Stable power supply and calibration ensure consistent interactive floor LED display performance.

Standard production for LED floor panels is about 10–20 working days, depending on order size and customization level. Complex interactive systems may require additional time.

Yes, an interactive LED floor is designed for high-traffic events such as concerts, exhibitions, and installations. Proper structure ensures stability, safety, and durability.

Yes, OEM and ODM services for LED floor display projects include customization of size, structure, branding, and control systems to meet different application needs.

Yes, installation support for event LED floor displays includes structural guidance, wiring diagrams, and remote or on-site assistance for safe deployment.
